Mathematical Principles in Mechanically Aligned Total Knee Arthroplasty

Mechanical Axis Concept

• The primary mathematical goal is to obtain a straight load-bearing axis:
• Mechanical axis (MA) = line from femoral head center – to – center of knee – to – center of ankle
  • MA of femur = 5-7° (average 6°) valgus to Anatomical Axis (AA) of femur
  • AA of tibia = MA of tibia
• Neutral alignment = 180±3°

Natural Knee

• Not perfectly horizontal
• Joint line = around 3° varus
  • Femoral joint line = 3° valgus (both distal and posterior joint lines) = 9° valgus to AA
    • Medial femoral condyle > Lateral femoral condyle
  • Tibial joint line = 3° varus = 3° varus to both MA and AA

Target alignment in MA-TKA

• Tibiofemoral alignment restored to 6 ± 2° of anatomical valgus.
• Coronal plane:
  • Femoral component = aligned between 5-10° of anatomical valgus
  • Proximal tibia = resected at 90 ± 2° in relation to tibial shaft axis
• Sagittal plane:
  • Femoral component = aligned between 0-10° of flexion
  • Tibial component = neutral or slightly (5°) posterior slope

Tibial cut

• Affects both extension and flexion gap
• Extramedullary jig used = In line with MA and AA
• Cut = 90° to MA
• Joint line = 3° valgus relative to native joint-line (which is 3° varus)
• Posterior slope = 5°

Distal femoral cut

• Affects extension gap
• Intramedullary jig used = In line with AA
• Distal femoral cut angle = Valgus Correction Angle (VCA) = Femoral mechanical axis angle – Femoral anatomical axis angle
• Typical value: 5°–7° valgus relative to AA (average 6°)
• Joint line = 3° varus relative to native joint-line (which is 3° valgus)

Posterior femoral cut

• Affects flexion gap
• We know posterior femoral joint line also = 3° valgus normally
• But MA-TKA tibial cut = 3° valgus to native joint line
• So, to make a rectangular flexion gap:
  • Posterior femoral cut = 3° external rotation to posterior condyle reference = Parallel to trans-epicondylar axis (TEA) = Perpendicular to Whiteside’s line
  • This will cut more medial than lateral from posterior femoral condyle
  • Posterior femoral cut = 3° varus to native joint line

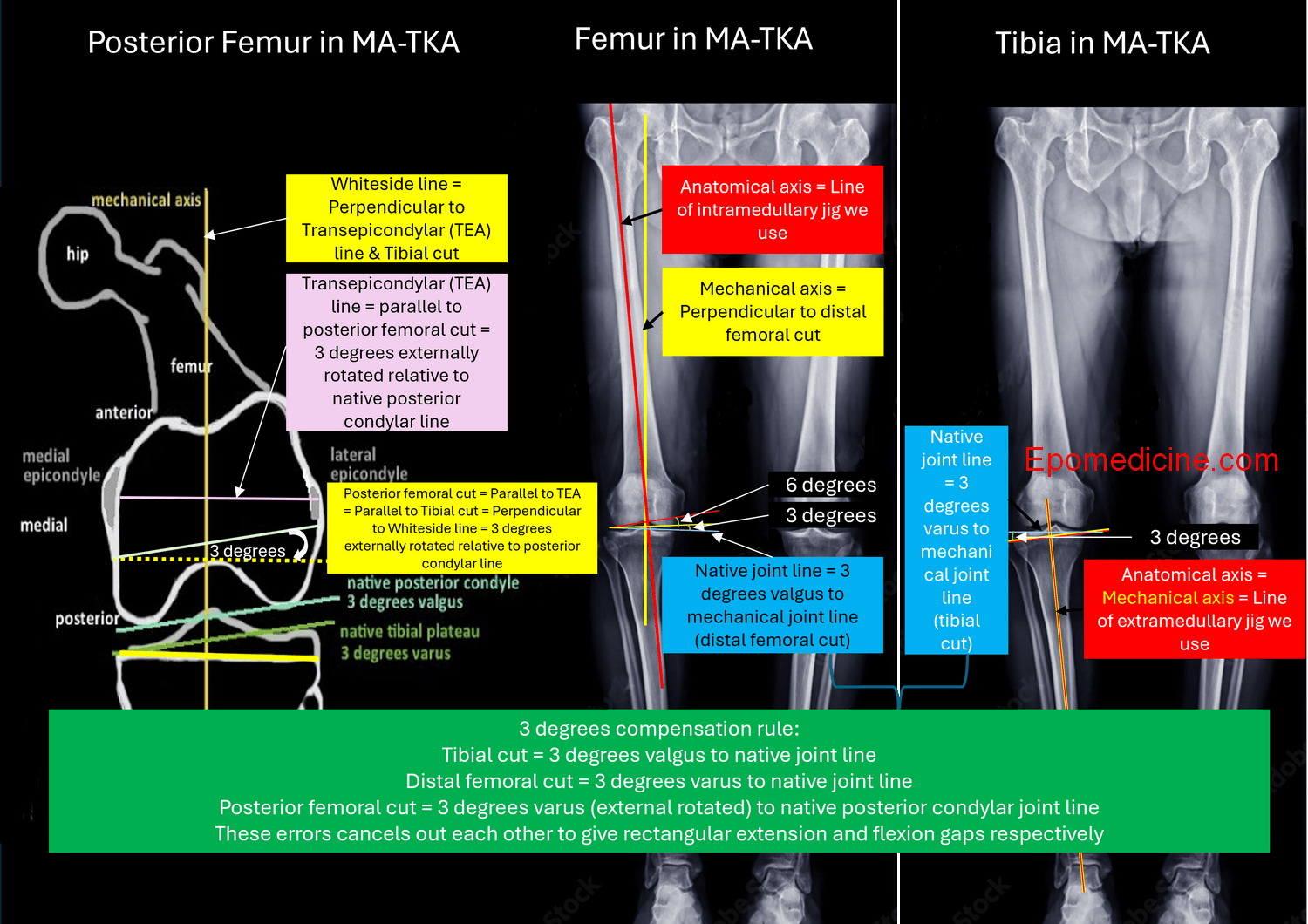

The 3° Compensation Rule

• Both cuts introduce small “errors” relative to native anatomy:
• MA-TKA Tibial joint line = 3° valgus from native surface
• MA-TKA Femoral joint line in both extension and flexion = 3° varus from native surface
• These cancel each other out to give:
  • Parallel femoral and tibial joint line
  • Perpendicular to the mechanical axis
• Extension gap = Flexion gap = Rectangular gap

Distal femoral and Tibial resection thickness = Implant thickness

• 8-10 mm from unaffected side
• Resection = Implant thickness – Cartilage wear

2 mm rule in TKA

• Gap balancing tolerance: Balanced knees require medial–lateral gaps ≤ 2 mm in extension and similar limits in flexion
• Tibial cut: 2 mm from more involved side
• Anterior femoral cut: 2-mm gap between the tip of the boom and the anterior cortex of
• the distal femur to prevent femoral notching
• Flexion and extension gap: Acceptable mismatch is upto 2 mm
• Joint line change: should be ≤ 2 mm (ideally <5 mm, but 2 mm is a precision target in modern TKA)

The 0-3-6-9 rule in Mechanical Alignment Total Knee Arthroplasty (MA-TKA)

References:

1. NATIVE KNEE ALIGNMENT — Hip & Knee Book
2. Whiteside, Leo A. (2004). Ligament Balancing in Total Knee Arthroplasty || . , 10.1007/978-3-642-59295-9(), –. doi:10.1007/978-3-642-59295-9
3. Mastering Orthopedic Techniques – TOTAL KNEE ARTHROPLASTY (First Edition: 2010)
4. Elmasry SS, Sculco PK, Kia M, Kahlenberg CA, Cross MB, Pearle AD, Mayman DJ, Wright TM, Westrich GH, Imhauser CW. A geometric ratio to predict the flexion gap in total knee arthroplasty. J Orthop Res. 2020 Jul;38(7):1637-1645. doi: 10.1002/jor.24719. Epub 2020 May 25. PMID: 32410240; PMCID: PMC7345479.
5. Bhor P, Pawar S, Kutumbe D, Vatkar A, Kale S, Jagtap R. Is Native Joint Line More Accurately Restored with Robotic Assisted Total Knee Arthroplasty than with Conventional Instruments? J Orthop Case Rep. 2025 Feb;15(2):233-238. doi: 10.13107/jocr.2025.v15.i02.5294. PMID: 39957945; PMCID: PMC11823860.
